| ◇ Platform (平台) | 8918C,单核双模，48~80MHZ | ||
| ◇ Form Factor (外观样式) | Smart (BT) Watch智能通话手环 | ||
| ◇ LCD (显示屏) | 1.83″,240*284 | ||
| ◇ TouchPanel (触摸屏) | OGS,全贴合 | 1.8厚 弧面 | |
| ◇ System Memory (系统内存) | 32M RAM | ||
| ◇ Internal ROM (系统内存) | 32MMB | ||
| ◇ External Flash (扩展内存) | / | ||
| ◇ Size (尺寸大小) | 40.9*35.7*11.6mm | ||
| ◇ Battery (电池容量) | 3.7V/200mAh | 要求：纯钴，精工，V3.0保护板 | |
| ◇ Operating system (操作系统) | Lhix OS system | ||
| ◇ Bluetooth | Bluetooth 3.0&5.3双模 | BR/EDR/LE Mode | |
| ◇ G-Sensor (重力感应) | Yes | 3D-gsensor | |
| ◇ Heart (心率) | Yes | 兼容Sensor、LED | |
| ◇ Speaker(扬声器) | Yes | ||
| ◇ Mic(麦克) | Yes | ||
| ◇ USB (USB 类型) | Yes | ||
| ◇ Vibrator (振动马达) | Yes | 扁平式 | |
| ◇ Encoder (编码器) | Yes | DK-F412 | |
| ◇ Wireless Charging(无线充电) | Yes | ||
| ◇ HW Description | Smart (BT) Watch智能手表 | Remark | |
| ◇ Chip Set (芯片组) | 中科蓝讯 | 8918C,单核双模，48~80MHZ | |
| ◇ CPU CLOCK (CPU时钟频率) | 48~156MHZ | ||
| ◇ Memory(内存) | |||
| * System Memory (系统内存) | 32M RAM | ||
| * Internal ROM (系统内存) | 32MMB | ||
| * External Flash (扩展内存) | / | ||
| ◇ LCD (显示屏) | |||
| * main LCD (主屏) | 1.83″,240*284 | ||
| * main LCD Backlight (主屏背光) | LED | ||
| * touch lens(触摸屏) | Capacitive(电容式) | ||
| ◇ Wireless transmission (无线传输) | |||
| * Bluetooth (蓝牙) | Bluetooth 3.0&5.3双模 | BR/EDR/LE Mode | |
| ◇ Battery (电池) | |||
| * Battery (电池容量) | 参考 3.7V/200mAh | 要求：纯钴，精工，V3.0保护板 | |
| * Standby time (待机时间) | 4 Days | ||
| * Talking time (通话时间) | 1.5 Hour | ||
| * MP3 duration time (MP3连续播放时间) | 4~5 Hours | ||
| * MP4 duration time (MP4连续播放时间) | \ | ||
| ◇ ME description (结构描述) | Item | Remark | |

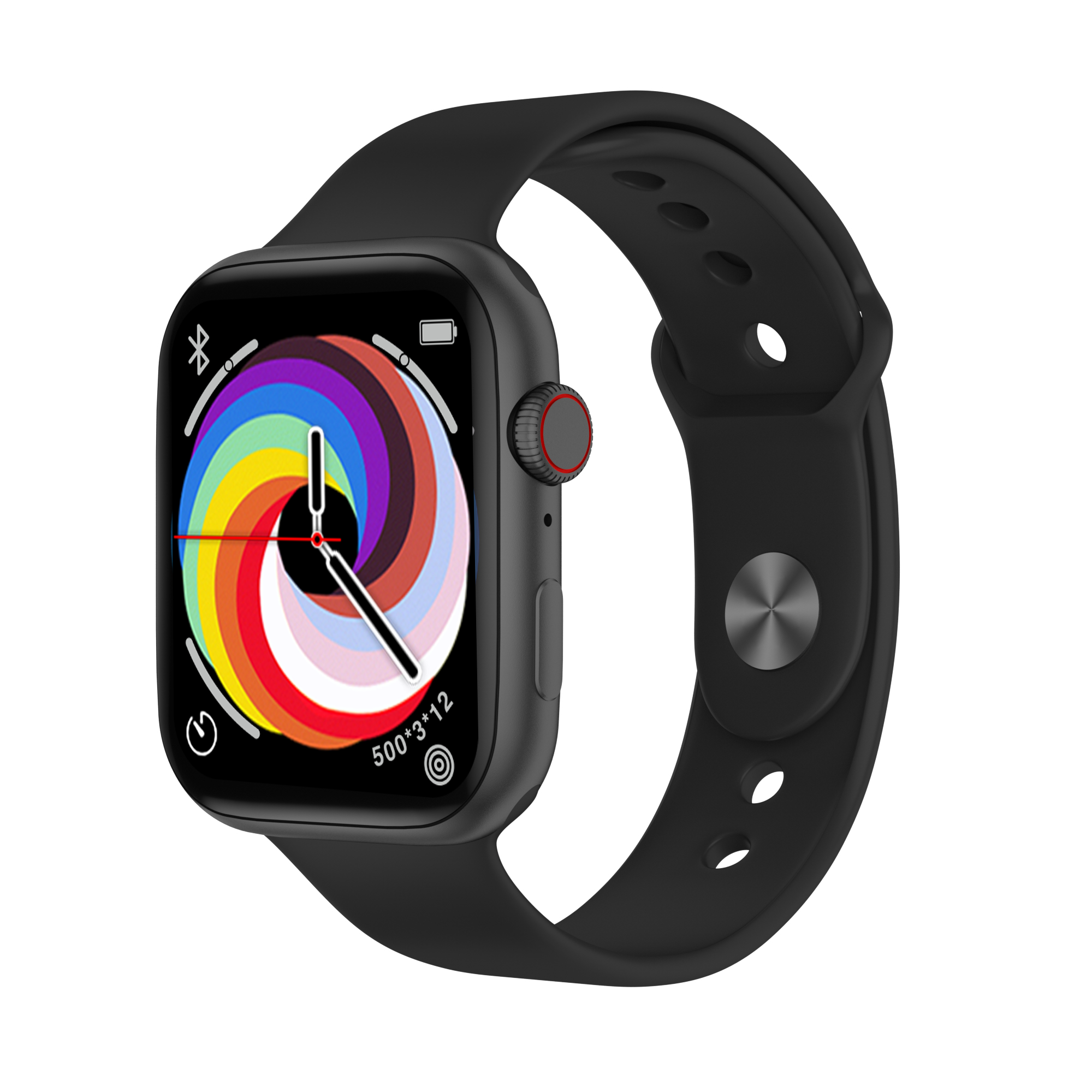

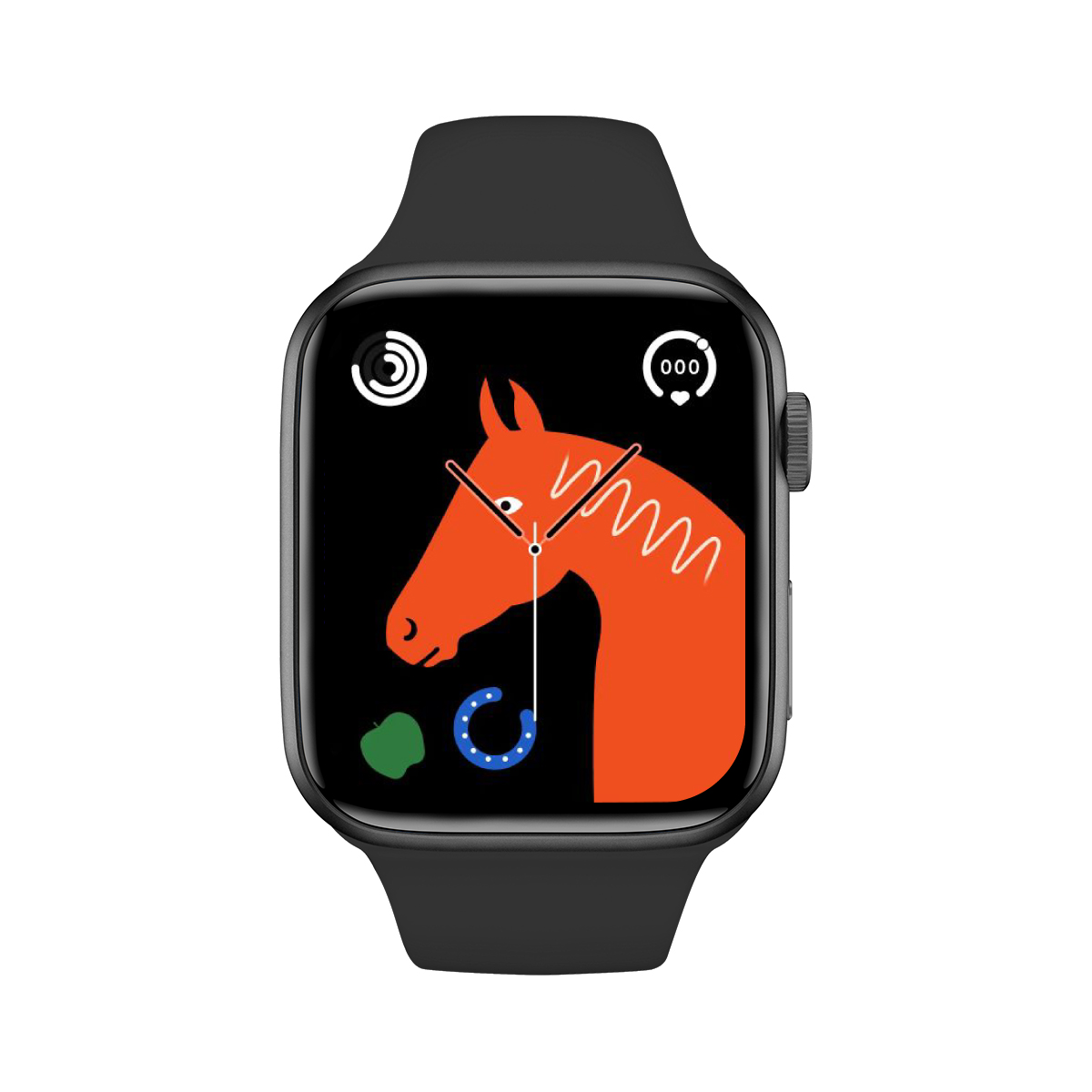

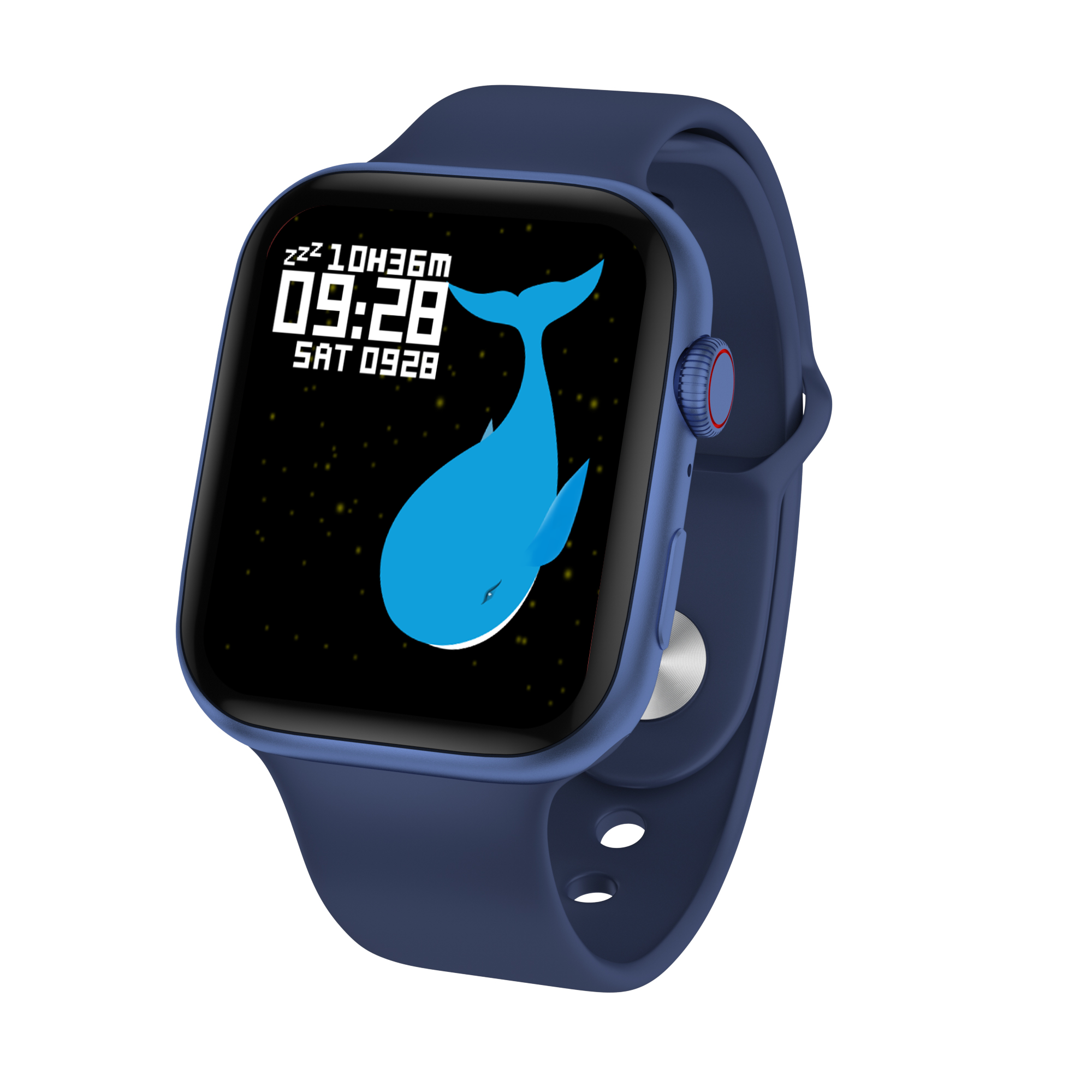

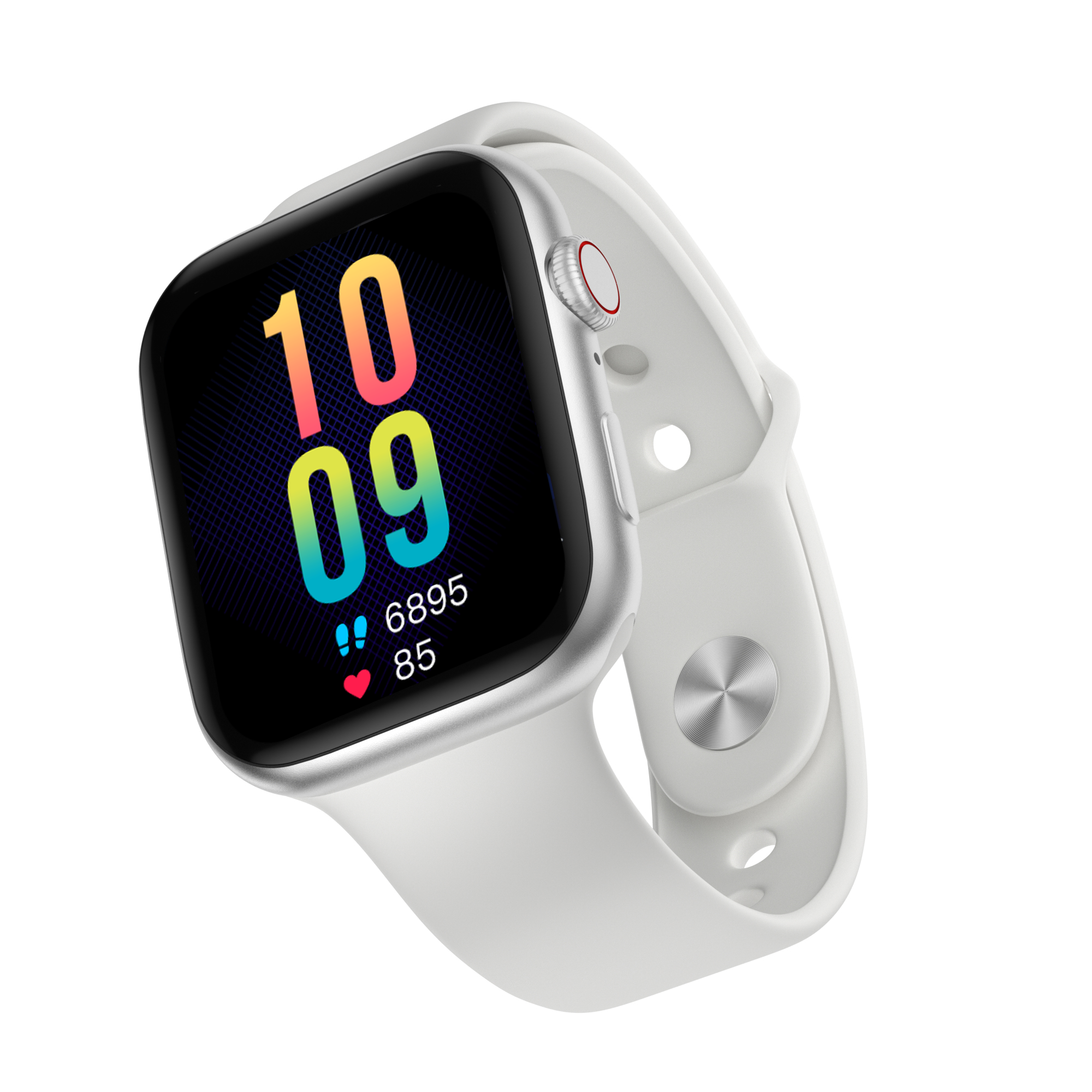

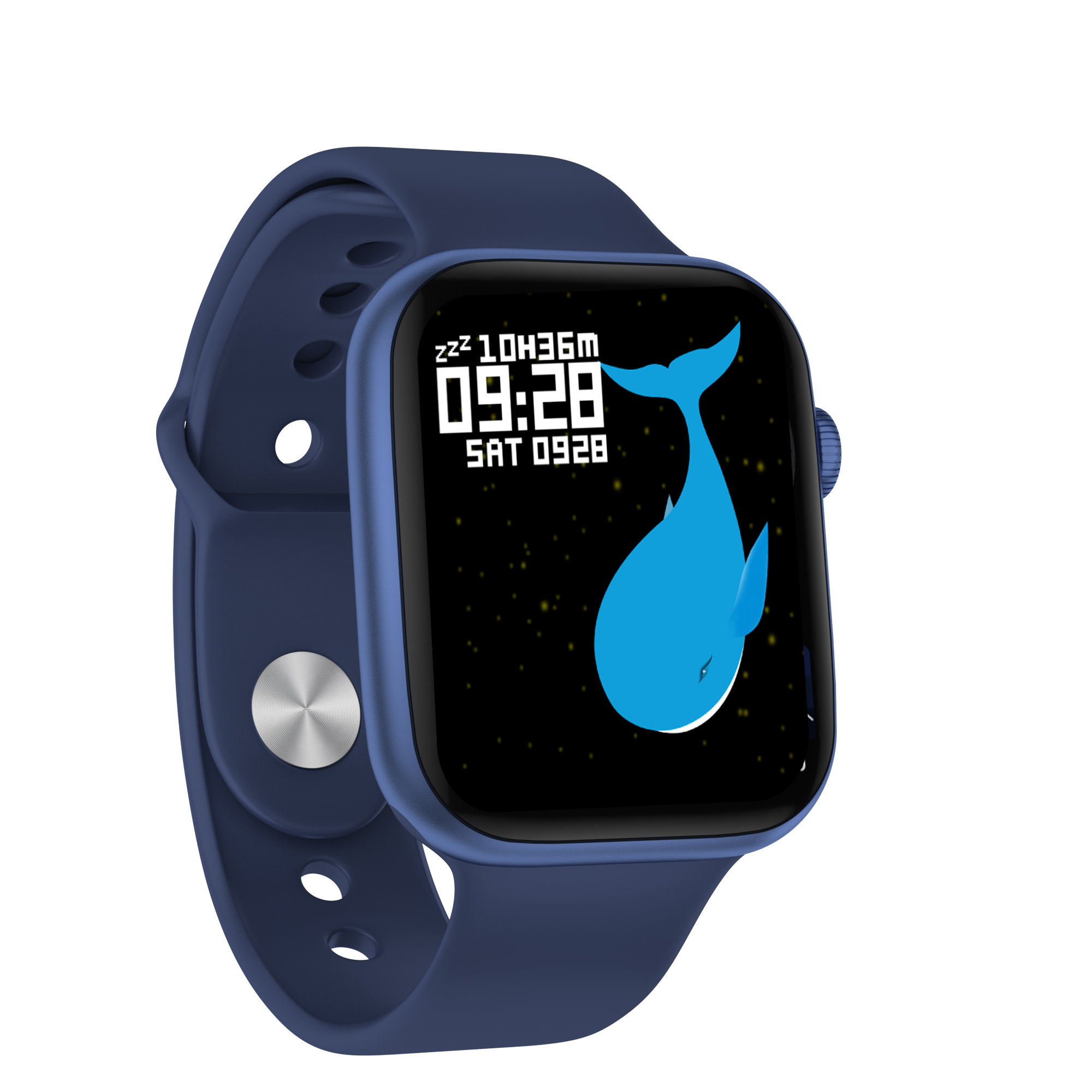

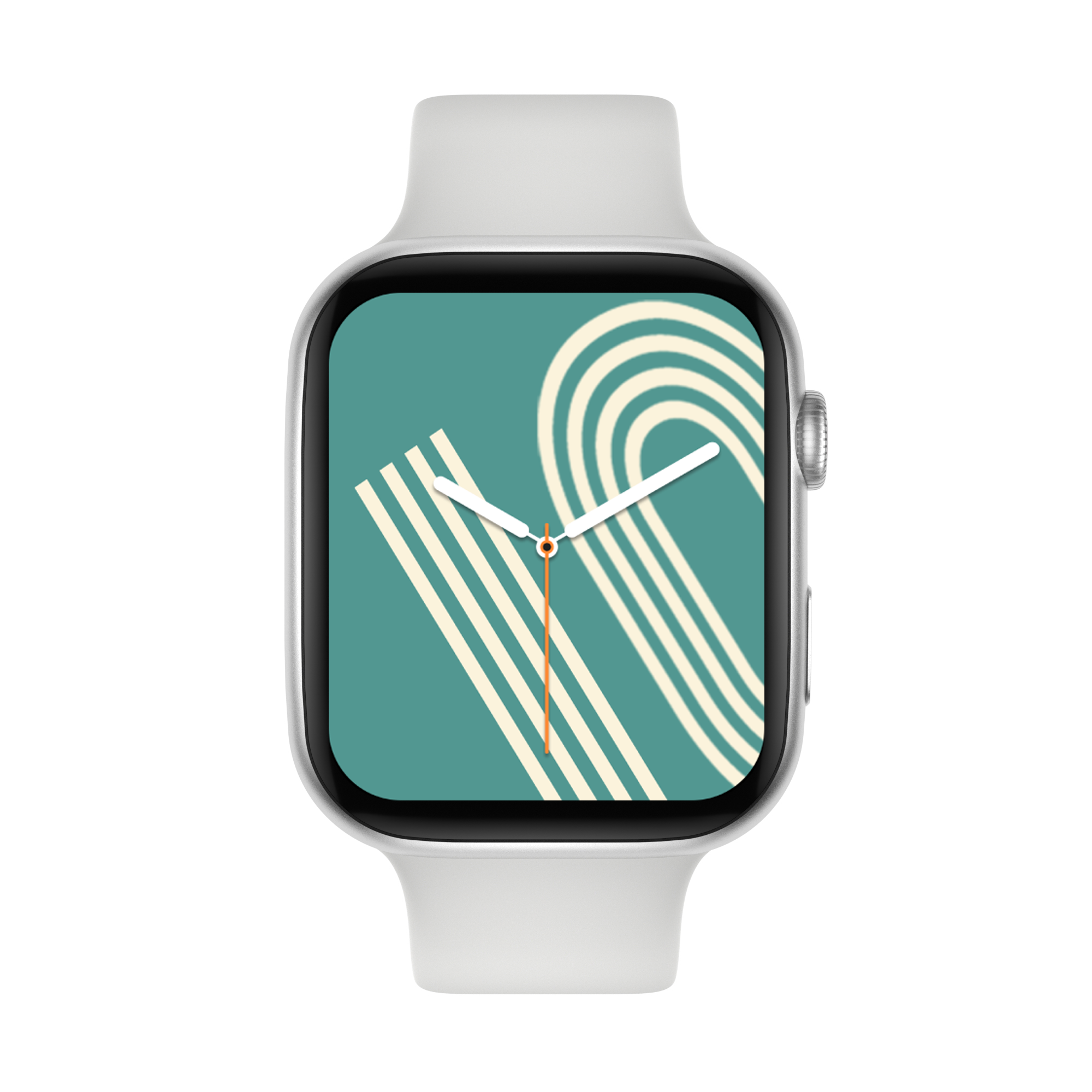

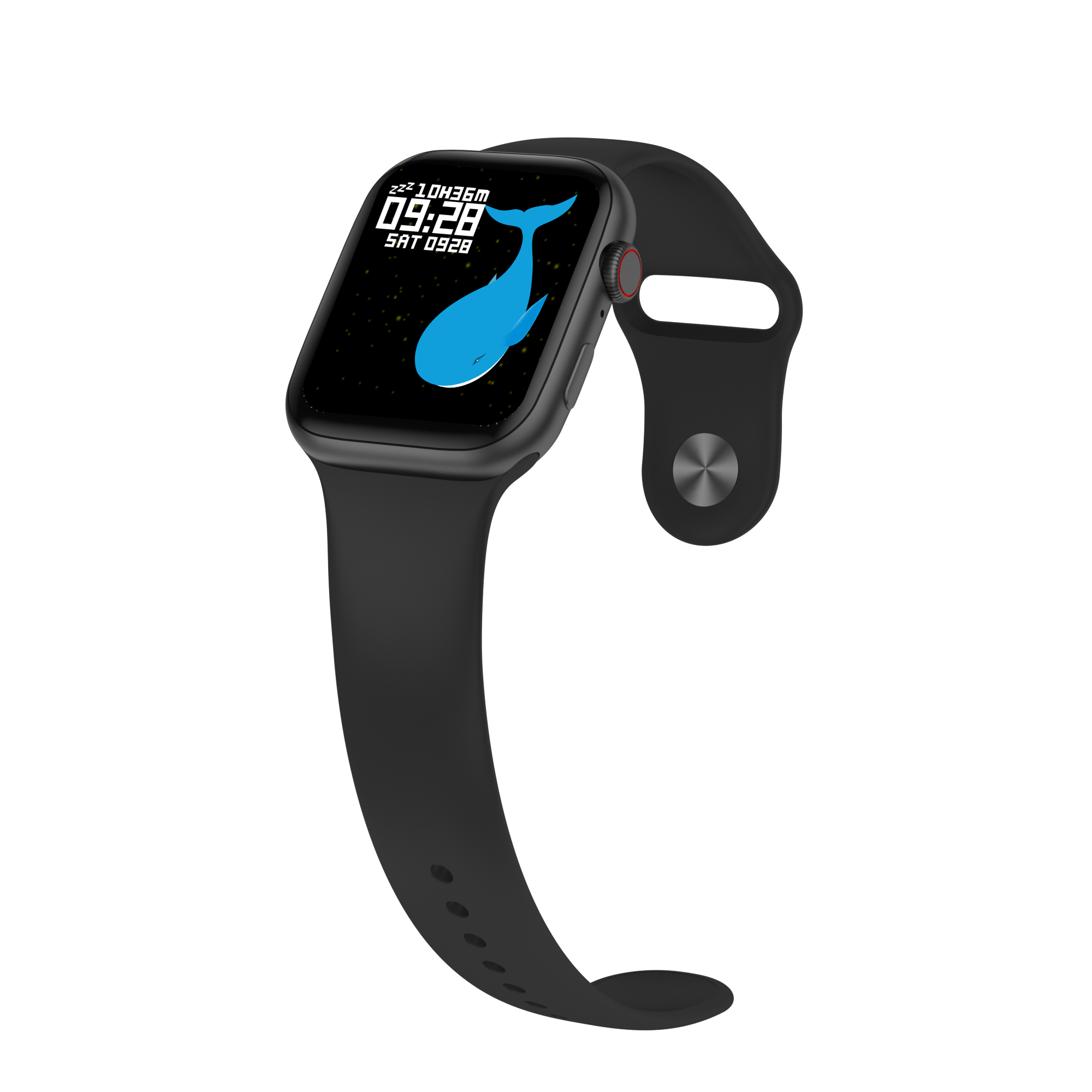

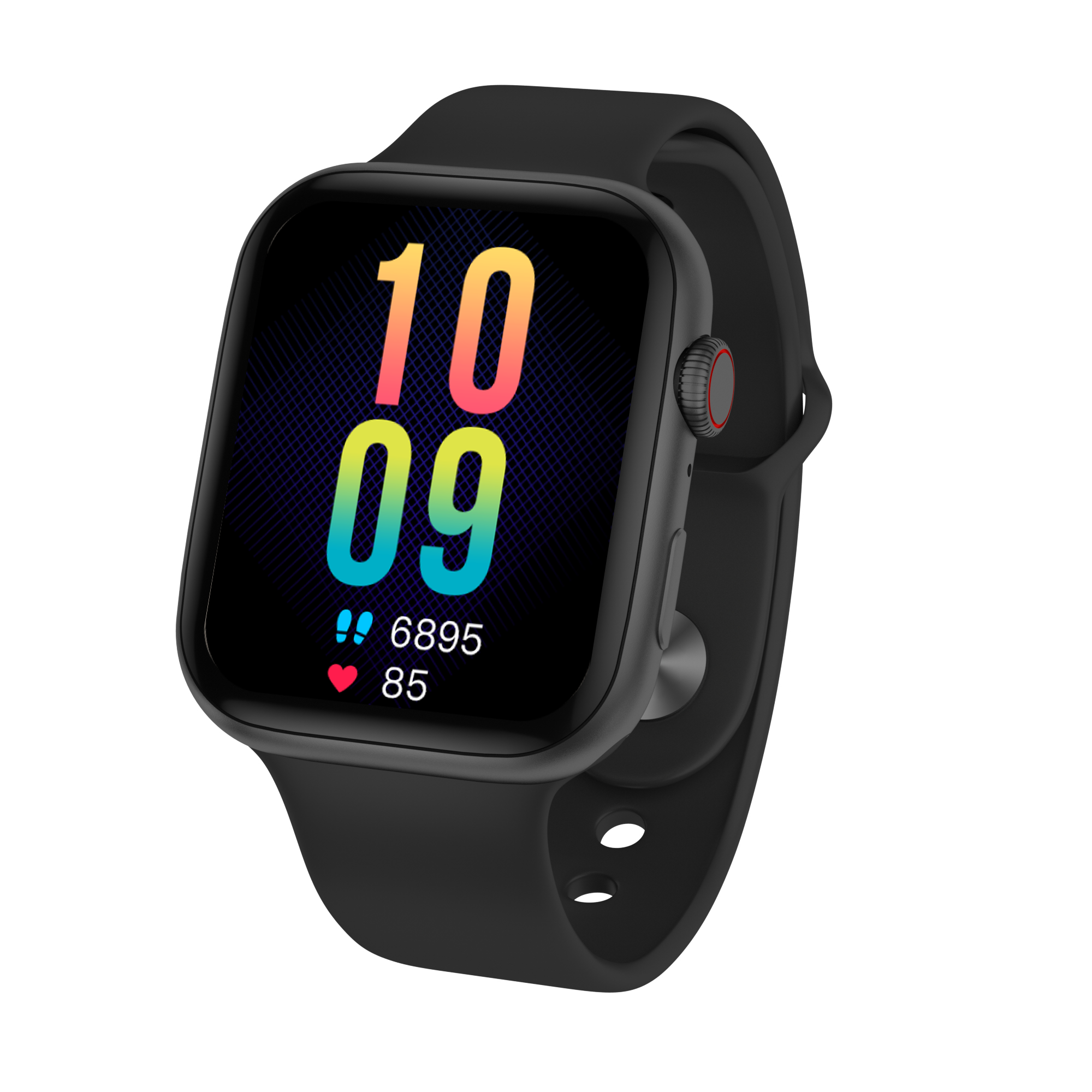

| ◇ Type (外观样式) | X28 | ||
| ◇ Key (按键) | 2, 开关机+功能按键 | ||
| ◇ Econder (编码器) | 旋钮开关 | 双击切换UI | |
| ◇ Socket & Connector (接口和连接器) | |||
| * 15 PIN ZIF | LCD | 四线一通 | |
| * 15 PIN ZIF | TP | ogs | |
| * 15 PIN ZIF | 假心率/真心率/编码器/2KEY/检测/VBAT/VCHG | ||
| * I/O socket (I/O口) | 2 pop Pin | 5V/0.2A | |
| ◇ SW Description (软件描述) | Item | Remark | |
| ◇ APP (Application) | Hry Fine | ||
| ◇ OS (操作系统) | Hry Fine OS system | ||
